Modular gearbox system

Due to order peaks, the delivery time for single items is 10-15 working days longer than stated. Please refer to our order confirmation for the specific delivery date. For urgent, short-term requirements, please contact us personally so that we can realise the delivery time necessary for you. You will find your contact person at the top of the menu under "My contact person", next to the language/country selection, or on this page.

Number of products: 8

drygear® Apiro gearbox with drive pin
The standard version among the Apiro gearboxes: the gearbox with drive pin enables a direct drive connection.  Available gear ratios: 4:1, 32:1, 64:1, optionally also: 3:1, 5:1, 8:1, 16:1
drygear® Apiro | Connection to dryspin® lead screws
  • Simple and direct connection to dryspin lead screws
  • Available options: DS10x25, DS12x5 and TR16x2
  • Cost-effective gearboxes made of iglidur polymer material
  • Modular design for manual and motor-operated adjustments
  • Fast conversion possible
  • Assembly without any special tools

Upon request

9 items, thereof ready for shipping:
9 in 24 - 48 hours
To the product page
drygear® Apiro gearbox with output shaft
The gearbox with output shaft enables direct connection to the output.
  • Available output shaft diameter: 8mm
  • Available transmission ratios are: 4:1, 32:1, 64:1
  • Standard motor option: NEMA17 / 23 stepper motor
  • INI kit for zero position optionally adaptable
  • Optionally also: 3:1, 5:1, 8:1, 16:1
For connection to the drylin linear unit, the Apiro-drylin coupling must be ordered additionally!

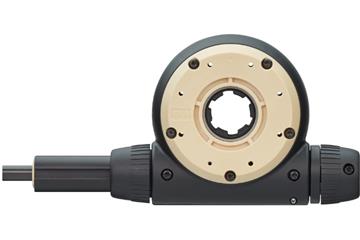

drygear® Apiro gearbox with multi-functional profile
With the help of the multi-functional profile, series connections of gears can be implemented, as spacings of elements or products can be regulated. This combination is often used for applications in the food or packaging industry.

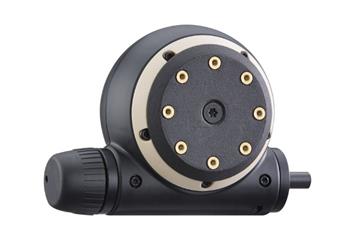

drygear® Apiro gearbox with rotary disc
This gearbox is particularly suitable for slewing ring applications, as it can be used also as a rotary axis. For example, it can be used in laboratory automation.

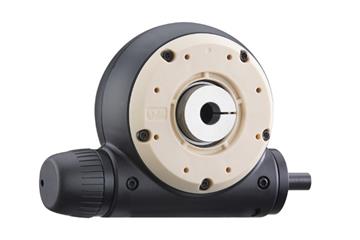

drygear® Apiro gearbox with coupling
The coupling can be used to attach various shafts with a maximum diameter of 12 millimetres. An exemplary application is the adaptation to linear axes.

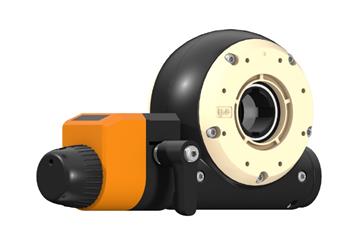

drygear® Apiro gearbox with manual clamp and position indicator
drygear apiro gearbox with manual clamp and position indicator
•Manual adjustment and installation of complete gearbox unit ...
•Accessories pivotable in four positions: 0°, 90°, 180°, 270°
•Optionally also: 3:1, 5:1, 8:1, 16:1
drygear® Apiro planetary gearbox with cantilever axis
  • Lubrication-free and maintenance-free
  • Greater forces possible with the same installation space
  • high efficiency
  • Great positional accuracy
  • Transmission: 4

Upon request

22 items, thereof ready for shipping:
21 in 24 - 48 hours
To the product page
