Low-profile drylin® SLT linear module with lead screw drive

Very flat, lightweight and 100% lubrication-free
An extremely flat design, the lateral spindle arrangement and a striking design are just some of the reasons why the drylin® linear module SLT has been honoured with the iF Award 2014. The flat linear module with spindle drive is technically impressive thanks to a drive with ball bearing mounted trapezoidal or high helix lead screw. The drive can be either manual or motorised. The SLT series is based on the drylin® T miniature guide in installation sizes 12 and 15.

Advantages at a glance:

Based on lubrication-free drylin® T miniature guide
Drive via trapezoidal or steep thread
Compact and flat type
Slide with individual clearance adjustment
Variable spindle arrangement

SLT-BB

Very flat design due to lateral spindle arrangement
Variable spindle pitch
Adjustable drylin® T miniature slide
Left or right spindle alignment selectable
Two sizes: SLT-BB-0412 & SLT-BB-0415

Cost-effective drylin SLT linear table from the econ series

SLTP - saved in injection moulding

Developed in 3D printing, manufactured cost-effectively in injection moulding
Very fast assembly due to few components
Carriage with many fastening options

SLN - Miniature linear modules

Components made of aluminium and plastic
Completely lubrication-free
Slide bearing spindle
Very compact type

Go to miniature linear axes

Configure individual linear module with lead screw drive

Find and order or enquire about the right linear module SLN or SLT with spindle drive in just a few clicks
Enter your details and select the right proposal
Place in the shopping cart and order or enquire online
Download parts list as PDF file

Product finder for the drylin drive technology

Configure drylin drive technology online

Product finder for the drylin drive technology

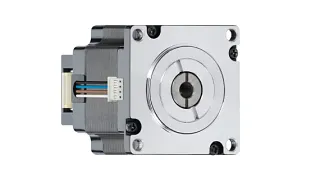

Lead screw stepper motors drylin E

For a motorised spindle drive of the flat linear module, igus offers® powerful spindle-stepper motors. The motors are available in three sizes: NEMA11, NEMA17 and NEMA23. The combination with a dryspin® threaded spindle guarantees precise centring and a long service life of the flat linear module.
