e-skin® corrugated tube for cleanrooms

Safe and abrasion-resistant guidance of cables in cleanrooms
► Abrasion resistant
► IPA classification ISO Class 1
► Compact and modular design
► Easy to open and flexible filling
► Reclosable opening mechanism

To keep rooms free of particles, all machine components must be abrasion-resistant, including the energy supply systems. The e-skin corrugated tube supplies systems with data, media and energy without unwanted particles contaminating the air.

Buy e-skin corrugated tube now

Product selection

The e-skin is a corrugated tube consisting of an upper and lower shell that form a complete closure when connected. The simple, reclosable opening mechanism makes it easy to maintain and inspect the cables inside. e-skin therefore offers many advantages over conventional corrugated tubes and is available in three versions:

e-skin SK | For unsupported lengths of up to 2.0m and installation space starting at 250mm

SK28 series

Inner height hi: 28mm
Inner width Bi: 68mm
Bend radius R: 55mm
Pitch: 112mm

Buy SK28 now

SK40 series

Inner height hi: 38mm
Inner width Bi: 85mm
Bend radius R: 100mm
Pitch: 112mm

Buy SK40 now

e-skin soft SKS | For unsupported lengths of up to 1.3m and installation space starting at 150mm

SKS20

Inner height hi: 20mm
Inner width Bi: 33mm
Bend radius R: 55mm
Pitch: 112mm

Buy SKS20 now

SKS24

Inner height hi: 24mm
Inner width Bi: 48mm
Bend radius R: 55mm
Pitch: 112mm

Buy SKS24 now

SKS28

Inner height hi: 28mm
Inner width Bi: 68mm
Bend radius R: 55mm
Pitch: 112mm

Buy SKS28 now

SKS40

Inner height hi: 38mm
Inner width Bi: 85mm
Bend radius R: 100mm
Pitch: 112mm

Buy SKS40 now

e-skin Hybrid SKY | For unsupported length of up to 1.4m and installation space starting at 200mm

SKY28

Inner height hi: 28mm
Inner width Bi: 68mm
Bend radius R: 55mm
Pitch: 112mm

Buy SKY28 now

SKY40

Inner height hi: 38mm
Inner width Bi: 85mm
Bend radius R: 100mm
Pitch: 112mm

Buy SKY40 now

Real-world application

Adhesive dispenser for camera modules

Customer requirements: The company Mingseal manufactures products for the 3C industry (computer, communication and consumer electronics). The main product is an adhesive dispenser for camera modules. The igus E3 and E6 energy chain systems, which are already suitable for ISO Class 1 according to IPA, were previously used as energy supply systems. Nowadays, however, the market demands an even higher particle-free standard (and thus theoretically an even better ISO Class) than before, especially for mobile phone camera modules. The reason for this is the ever-increasing number of pixels on mobile phone cameras, because if there is just one particle on these modules, the entire module is abandoned and the overall equipment effectiveness (OEE) and the yield (YIELD) of the system drop enormously.

Our solutions: In the first step, the customer had to replace the energy chain with other products, e.g. welded cleanroom ribbon cables. The disadvantages of this solution soon became apparent: On the one hand, it was not possible to open the welded ribbon cables to add or replace cables, and on the other hand, the cables broke very quickly because they had to support themselves. After only half a year, the first defects appeared on these welded cables, which in turn led to the system coming to a standstill. The igus cleanroom energy supply system e-skin convinced the engineers at Mingseal. The unique, openable corrugated tube for cleanrooms, which consists of an upper and lower shell, combined the engineers' requirements of openability, inherent rigidity and compactness with the highest cleanroom suitability according to ISO Class 1. The compact e-skin series SKS20 will be installed in new machines in the future.

The innovation

The e-skin corrugated tube is available in a closed version and a version with chambers that can be opened individually. This flexibility is unique on the market and represents an innovation. e-skin also has sufficient inherent rigidity and a defined bend radius (55 to 100mm).

The oval geometry ensures lateral stability. This allows for short unsupported lengths, even in confined spaces. Conventional corrugated hoses do not offer this option. The energy supply system is also quiet. It has a noise level of only 29dB (A), making it 5dB (A) quieter than standard clean cables.

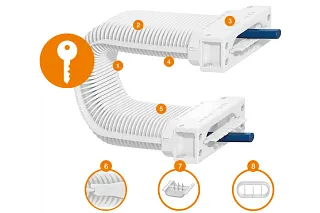

Why e-skin corrugated tube?

1. Cleanroom ISO Class 1.
Virtually no wear and abrasion

2. Two-piece corrugated tube.
Consisting of upper and lower shells

3. Attachment from any side.
KMA mounting bracket, optionally with strain relief

4. Oval geometry.
Protection against unwanted lateral movement

5. Completely closed.
Protected against dust and water

6. Reclosable opening mechanism.
Opens and closes using a zip-lock principle

7. Optional vertical separation.
Consisting of individual dividers and full-width shelves

8. Minimisation of abrasion
With the new interior separation made of tribo-optimised iglidur material, wear can be reduced by up to 80%.

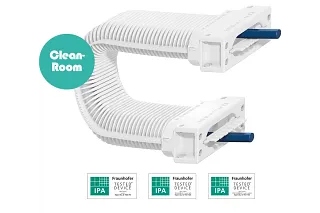

IPA classification

e-skin corrugated tube has been confirmed by the Fraunhofer IPA Institute in accordance with the ISO classification:

e-skin® SK SK28.068.02.1
e-skin® soft 0.SKS28.068.02.1
e-skin® hybrid SKY8.068.02.1

Tested at v = 0.5m/s, 1m/s and 2m/s, all with ISO Class 1

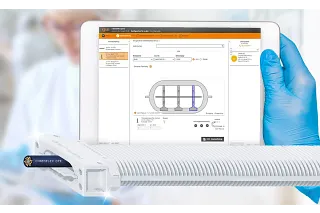

Interior separation configurator for the e-skin

With the interior separation configurator for the e-skin corrugated tubes, you can create filling variants in seconds and configure complete e-skin corrugated tubes with interior separation and connection elements.

Easy to use
Avoid filling errors with integrated filling guidance
Automatic creation of a parts list and drawing with dimensions
Easy to enquire about and order the complete corrugated tube with chainflex cables and interior separation in the desired configuration

Configure the interior separation now

Quality from the igus cleanroom laboratory

The new igus cleanroom laboratory was built by Fraunhofer IPA for the rapid development of particle-free motion plastics that are suitable for cleanrooms up to air cleanliness Class 1 in accordance with ISO 14644-1.

Learn more

Endurance test

The e-skin has been specially developed for cleanroom applications. In the laboratory, it withstood more than 6.4 million double strokes at 3m/s under realistic conditions.

Bending test

The standard bending test demonstrates how flexible the e-skin soft is. It only bends, even under loads that would cause other energy chains to break.

Sound measurement

This test shows how quiet e-skin corrugated tubes and e-skin cleanroom ribbon cables are. Compared to ribbon cables produced by competitors, the e-skin flat has a noise level of only 29dB(A).

e-skin corrugated tube compared to other cleanroom products?

⬤⬤⬤⬤⬤ ideal | ⬤ rather less suitable | Yes | X No

	Corrugated tube e-skin SK	e-skin SKS corrugated tube	e-skin SKY corrugated tube	e-skin flat & CFCLEAN	Energy chain E6/E6.1

Class 1 according to EN ISO 14644-1	✔	✔	✔	✔	✔
Modular design	⬤⬤⬤⭘⭘	⬤⬤⬤⭘⭘	⬤⬤⬤⭘⭘	⬤⬤⬤⬤⬤	⬤⬤⬤⬤⬤
Components individually interchangeable	✔	✔	✔	✔	✔
Quick filling, openable	⬤⬤⬤⬤⬤	⬤⬤⬤⬤⬤	⬤⬤⬤⬤⬤	⬤⬤⬤⬤⭘	⬤⬤⬤⬤⬤
Fast delivery	⬤⬤⬤⭘⭘	⬤⬤⬤⭘⭘	⬤⬤⬤⭘⭘	⬤⬤⬤⬤⭘	⬤⬤⬤⬤⬤
Easy maintenance	⬤⬤⬤⬤⭘	⬤⬤⬤⬤⭘	⬤⬤⬤⬤⭘	⬤⬤⬤⭘⭘	⬤⬤⬤⬤⬤
Available from stock	✔	✔	✔	✔	✔
Can be shortened	✔	✔	✔	✔	✔
Can be widened	X	X	X	✔	✔
High productivity rate	⬤⬤⬤⬤⭘	⬤⬤⬤⬤⭘	⬤⬤⬤⬤⭘	⬤⬤⬤⬤⬤	⬤⬤⬤⭘⭘
No minimum order quantity	✔	✔	✔	✔	✔
Cost-effective	⬤⬤⬤⬤⭘	⬤⬤⬤⭘⭘	⬤⬤⬤⬤⭘	⬤⬤⬤⭘⭘	⬤⬤⬤⬤⬤
Suitable for unsupported applications	⬤⬤⬤⭘⭘	⬤⬤⭘⭘⭘	⬤⬤⭘⭘⭘	⬤⬤⬤⬤⭘	⬤⬤⬤⬤⬤
For high dynamics	⬤⬤⬤⭘⭘	⬤⬤⬤⭘⭘	⬤⬤⬤⭘⭘	⬤⬤⬤⭘⭘	⬤⬤⬤⬤⬤
Space-saving	⬤⬤⬤⭘⭘	⬤⬤⬤⭘⭘	⬤⬤⬤⭘⭘	⬤⬤⬤⬤⬤	⬤⬤⬤⬤⭘
Fill weight	⬤⬤⬤⬤⭘	⬤⬤⬤⭘⭘	⬤⬤⬤⭘⭘	⬤⬤⭘⭘⭘	⬤⬤⬤⬤⬤
36-month guarantee	✔	✔	✔	✔	✔
Saves resources	✔	✔	✔	✔	✔
Everything from one source (chain, cable, connector)	✔	✔	✔	✔	✔
Products also available individually	✔	✔	✔	✔	✔
Quiet, smooth operation	⬤⬤⬤⬤⭘	⬤⬤⬤⬤⭘	⬤⬤⬤⬤⭘	⬤⬤⬤⬤⬤	⬤⬤⬤⬤⭘
Online calculation of service life	X	X	X	X	✔
Online interior separation configurator	✔	✔	✔	X	✔
Suitable for the following industries	Electrical manufacturing 3C industries Dispenser Glass cutting Semiconductor industry FPD production Microelectronics AOI	Electrical manufacturing 3C industries Dispenser Glass cutting Semiconductor industry FPD production Microelectronics AOI	Electrical manufacturing 3C industries Dispenser Glass cutting Semiconductor industry FPD production Microelectronics AOI	Electrical manufacturing 3C industries Bonding Dispenser Semiconductor industry FPD production Medical technology Microelectronics AOI	Electrical manufacturing Semiconductor industry FPD production Microelectronics Panel robots Packaging Plotters/printers Medical technology
	Buy now	Buy now	Buy now	Buy now	Buy now

Realised in practice

Adhesive dispenser for camera modules

The e-skin corrugated tube impressed the engineers at Mingseal. The unique openable corrugated tube for clean rooms, which consists of an upper and lower shell, combined the engineers' requirements in terms of openability, inherent rigidity, compactness and, of course, maximum cleanroom suitability in accordance with ISO Class 1. The compact e-skin SKS20 series will be installed in new machines in the future.

Learn more

e-skin corrugated tube in the production of printed circuit boards

Printed circuit board manufacturing

An abrasion-resistant e-skin corrugated tube from igus is used in machines for the production of printed circuit boards and semiconductors. With the e-skin, airborne dust is no longer an issue.

Lifting systems

For safe energy supply in lifting systems in the pharmaceutical industry or in biotechnology
, the e-skin corrugated tube is used. It is robust, modular and can be shortened as required.

Accessories

e-skin opener

The e-skin opener allows the upper and lower shells of the corrugated tube to be opened and closed quickly and easily. This comes with the purchase.

Cleanroom-compatible cables

918 types with cleanroom classification IPA Class 1. 166 types with cleanroom classification IPA Class 2. Tested and inspected with a 4-year guarantee.
