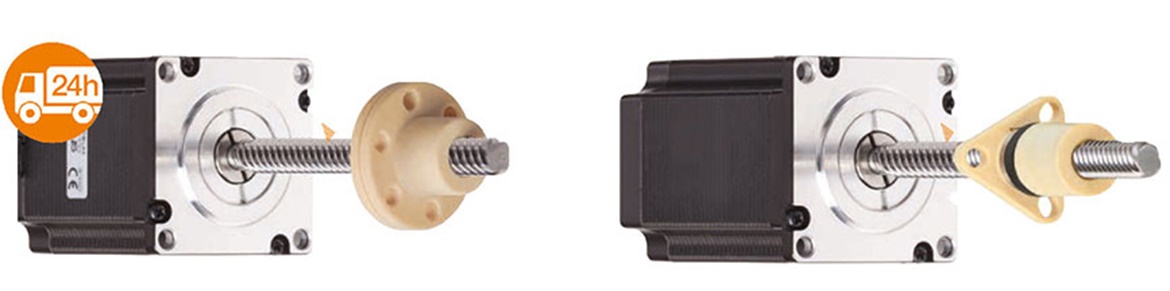

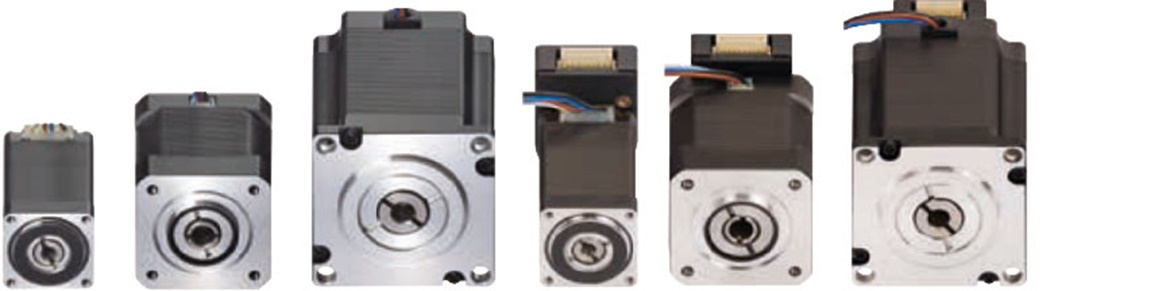

Ready-to-connect drylin® E linear actuator units consisting of: Powerful NEMA stepper motors, optionally with encoder for greater machine accuracy
Efficient dryspin® high helix thread
Lubrication-free dryspin® lead screw nuts
Available from stock in 24 hrs
| Part No. | Max. load | Max. speed | Motor | Encoder | ls | L | Usable can be used | ||
|---|---|---|---|---|---|---|---|---|---|
| [N] | [m/min] | +1/-3 mm* | |||||||
| DLE-LA-0001 | 50 | 6.35 | NEMA11 | - | DST 6,35x5,08 | 115 | 100 | 987.88 MYR | |
| DLE-LA-0002 | 50 | 6.35 | NEMA11 | X | DST 6,35x5,08 | 115 | 100 | 1,692.54 MYR | |
| DLE-LA-0003 | 100 | 15 | NEMA17 | - | DST 8x15 | 170 | 150 | 1,081.09 MYR | |
| DLE-LA-0004 | 100 | 15 | NEMA17 | X | DST 8x15 | 170 | 150 | 1,826.59 MYR | |
| DLE-LA-0005 | 500 | 9 | NEMA23 | - | DST 10x12 | 225 | 200 | 1,721.11 MYR | |
| DLE-LA-0006 | 500 | 9 | NEMA23 | X | DST 10x12 | 225 | 200 | 2,386.59 MYR |

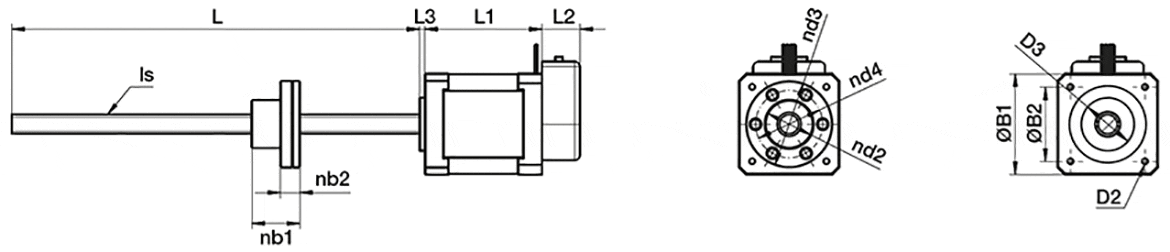

| Part No. | L1 | L2 | L3 | B1 | B2 | D2 | D3 | nb1 | nb2 | nd2 | nd3 | nd4 | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| +1mm | ||||||||||||||
| DLE-LA-0001 | 51 | 15.2 | 2 | 28.2 | 23 | M2,5 | 22 | 15 | 5 | 13 | 25 | 19 | 987.88 MYR | |
| DLE-LA-0002 | 51 | 15.2 | 2 | 28.2 | 23 | M2,5 | 22 | 15 | 5 | 13 | 25 | 19 | 1,692.54 MYR | |
| DLE-LA-0003 | 49 | 16 | 2 | 42.3 | 31 | M3 | 22 | 20 | 8 | 20 | 36 | 28 | 1,081.09 MYR | |
| DLE-LA-0004 | 49 | 16 | 2 | 42.3 | 31 | M3 | 22 | 20 | 8 | 20 | 36 | 28 | 1,826.59 MYR | |
| DLE-LA-0005 | 76 | 16 | 1.6 | 56.4 | 47.14 | 5 | 38.1 | 25 | 10 | 25 | 42 | 34 | 1,721.11 MYR | |
| DLE-LA-0006 | 76 | 16 | 1.6 | 56.4 | 47.14 | 5 | 38.1 | 25 | 10 | 25 | 42 | 34 | 2,386.59 MYR |
